Delta X G2/6 Portable Real-time Spectrum Analyzer Counter Surveillance Sweeping System

General features

• Quickly and reliably detects all kinds of RF listening devices, including analog, digital, constantly existing and intermittent, sending audio or video, with or without encryption
• Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, 5G(<6GHz) Bluetooth, Wi-Fi, DECT, etc.
• Detects illegal information transmission in AC, telephone, Ethernet, alarm and other wires as well as in the infrared range with the help of the supplied Multifunction Probe
• Can work in instant detection mode, guarding mode, locating mode and car tracker detection
• Has a 20-50 times higher sensitivity and detection distance compared to conventional RF detectors and near-field receivers
• Real-time spectrum analysis gives the ability to detect short-burst signals such as Wi-Fi, Bluetooth or mobile devices within just a few seconds
• Automatic antenna selection provides high sensitivity and detection distance on all frequency bands
• Can monitor the RF environment 24 hours a day with data logging
• Capable of detecting covert bugging devices with an accumulation function and transmitters hidden within the spectrums of other signals
• Supports storage of an unlimited quantity of signals. Full information is stored in the log and can be reviewed during the detection, or at a later time. Multiple logs are supported.
• Demodulation of audio in FM, AM, USB, LSB, CW (adjustable BW 3…240 kHz)
• Alarm relay output can activate external devices when a dangerous signal is detected (turn on a CCTV system, for example)
• Powered from the laptop's or tablet’s USB

Features of the new generation

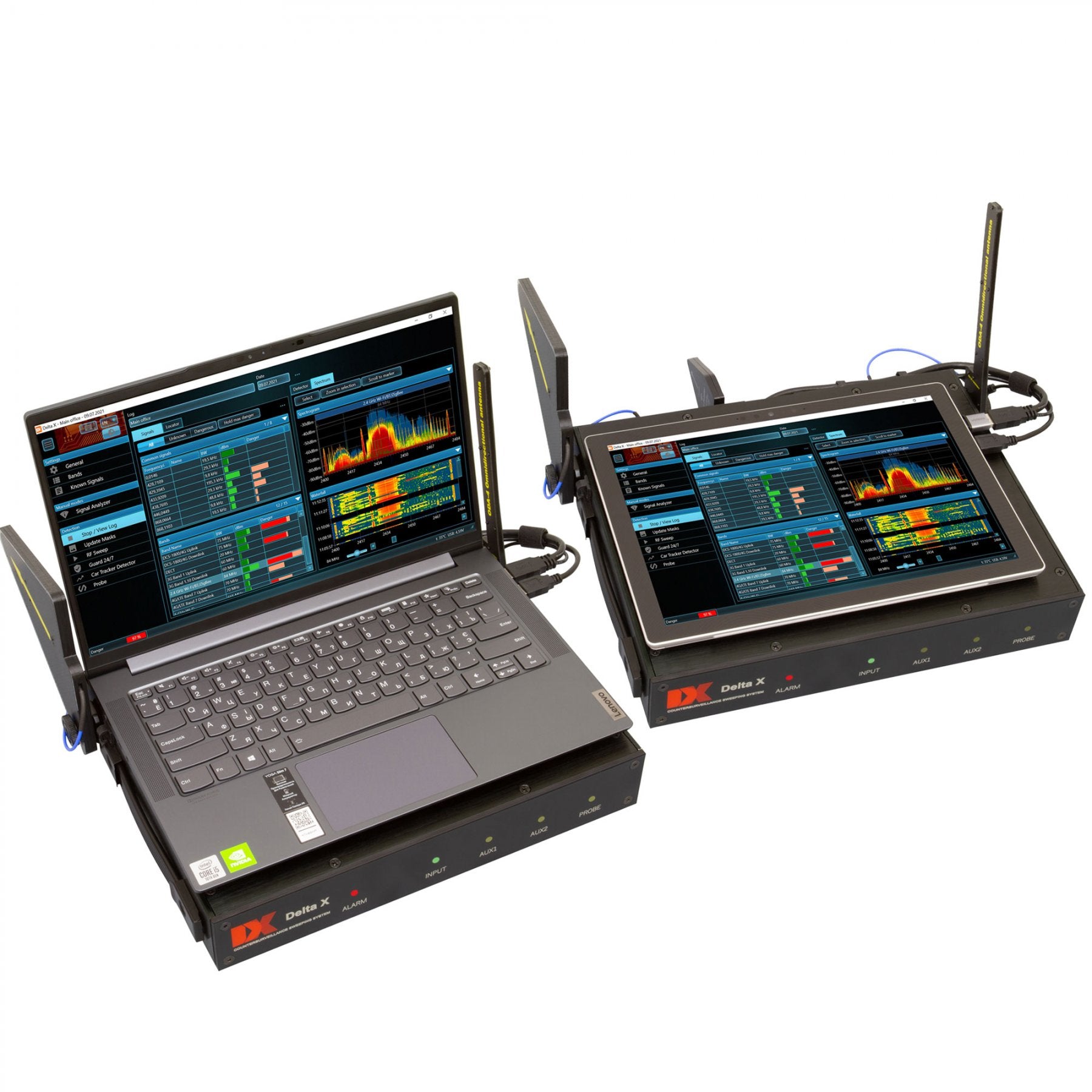

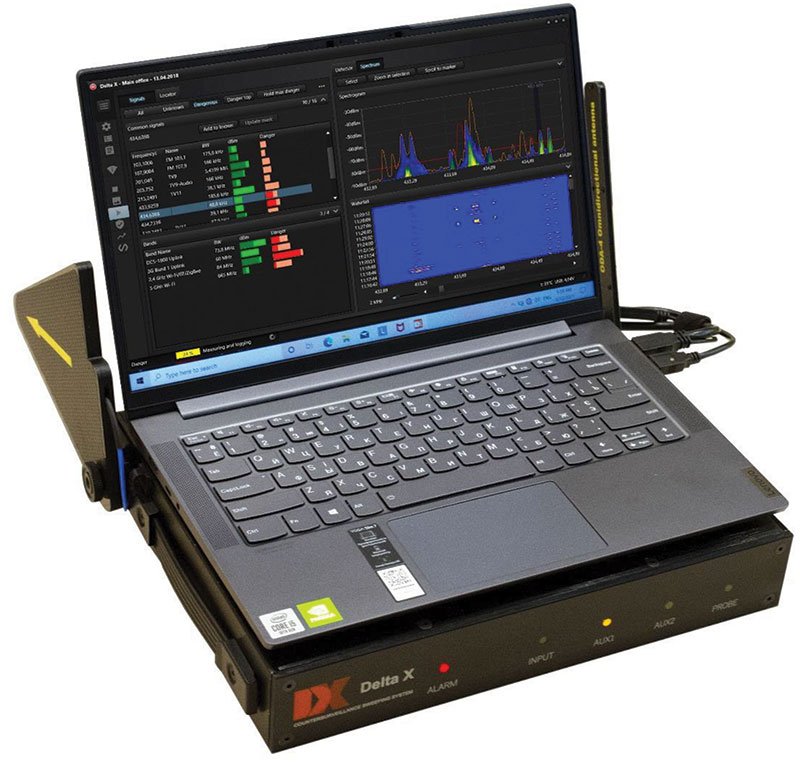

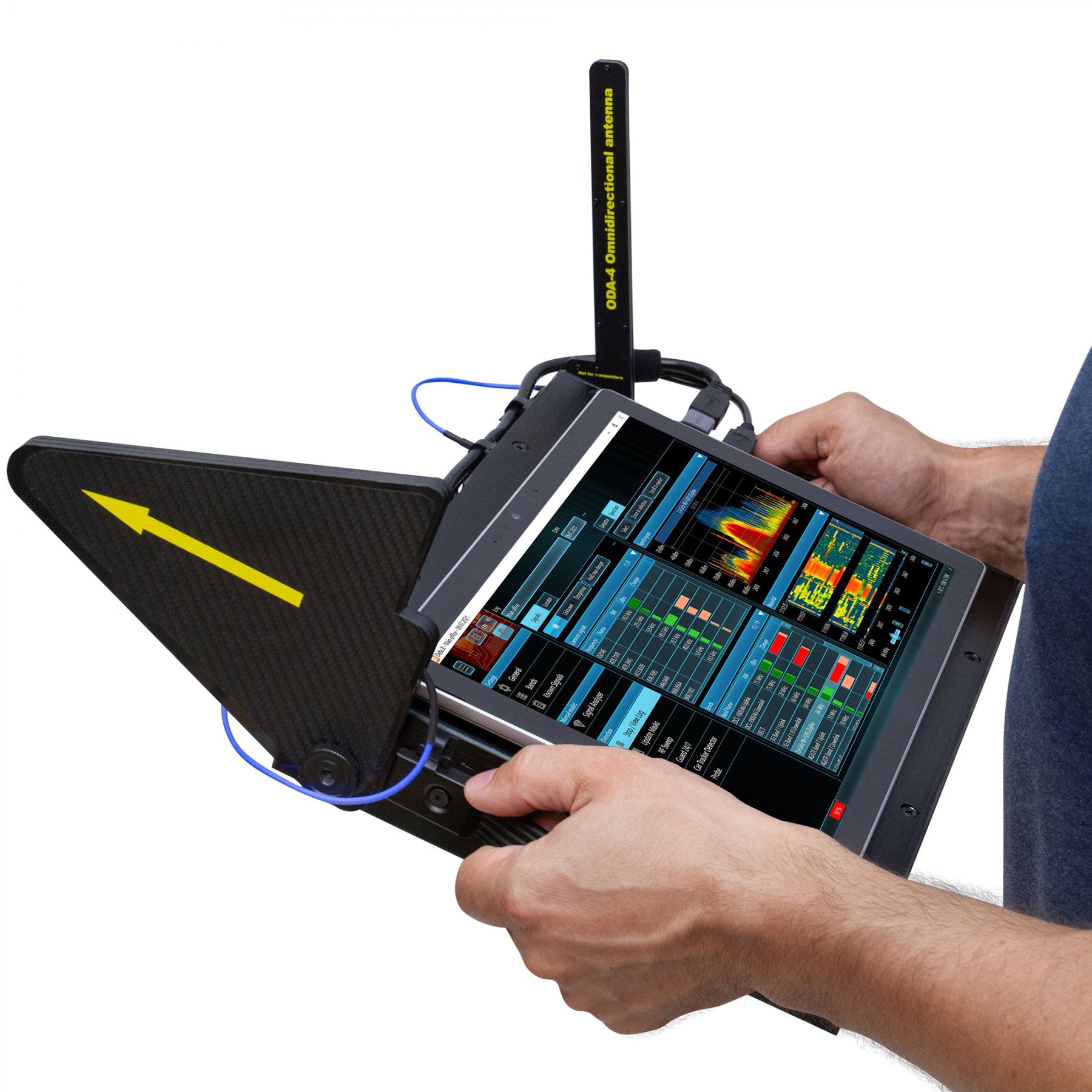

• New portable design – the device is reliably mated with the laptop or tablet and moved during the detecting and locating process
• The laptop or tablet is attached with the help of the magnetic holders
• Side handles are used for carrying
• All antennas are fixed to the main unit
• Carrying case is in the supplied set

Advantages

Functions of the software

• Rich visual representation: Spectrogram/Persistence, Waterfall, Alarms graph
• The Known Signals table allows the system to reject TV, FM and other "friendly" signals while maintaining high sensitivity to unknown signals.
• The Detector and Locator allow the operator to perform location of a bugging device with both visual and audio notification
• The Alarm Threshold decreases the false alarm rate
• The Hold Max Danger feature selects and shows the strongest signals for their location as the system is moved during detection
• The Update Mask procedure allows the operator to quickly adjust the system to the local RF environment in order to reject safe signals
• Sorting and filtering is supported in the Signals table
• The Report function allows the operator to export all obtained information about the desired signals
• Is easily localizable to any language

Working modes

• Stop/View Log
  Review of the detection results stored in the log. The Signals table, Spectrogram, Waterfall and Alarms graph give full information about the detected signals and alarm events
• Update masks
  Quick preparation for detection – the system automatically accumulates the broadcasting and other safe signals existing in the area in order to pass over them during the subsequent detection
• RF Sweep
  The main detection mode. Provides maximum reaction time and the highest sensitivity. The operator can move the system or its antenna during the detection.
• Guard 24/7
  Rejection of short transmissions and usage of two antennas reduces false alarms in this mode. Suitable for 24 hour detection without unwanted false alarms
• Car Tracker Detector
  Detection of vehicle mounted GPS trackers transmitting the coordinates via mobile networks
• Probe
  Checking of AC, Ethernet, Telephone and Alarm wires and the infrared/low frequency for the presence of unwanted bugging signals
• Signal Analyzer
  Analysis, demodulation and physical locating of detected signals
• Settings
  Includes the general settings and information about the mobile networks and wireless bands existing in the area as well as the known signals table

Specification

• Frequency range: 9 kHz - 6GHz
• Update rate: 2GHz-3GHz/sec
• Reaction time (How quickly a dangerous signal is detected): 2-3 sec
• Format: Handheld unit
• Probe input: PROBE
• Occupied disk space per 24 hours: < 12 Gb
• Unit dimensions(without antennas): 33.5x26x6 cm
• Unit weight(without laptop/tablet): 3.4 kg
• Spectrum resolution: 9.8 kHz
• Temperature Range: 0°C to +55°C
• Demands on laptop/tablet (Not included in the standard supplied set):
  Intel Core i3 / AMD Ryzen 3 or higher (Intel Core i5 / AMD Ryzen 5 recommended)
  1 x USB 3.0/3.1/3.2 (or USB Type C)
  1 x USB 2.0 (or USB Type C)
  RAM 8 Gb or more
  SSD 128 Gb or more
  Windows 7, 8, 10 or newer
  Screen 12-14″
• Displayed dynamic range: -90…-10 dBm
• Displayed spectrum spans: 0.5, 1, 2, 5, 10, 25, 50, 100, 200, 500, 1000, 2000, 3000, 6000 MHz
• Spectrum graphs: Spectrogram, Waterfall
• Spectrogram’s displayed data: Persistence, Live, Max, Threshold
• Detector’s modes: Wide-Range, Signal, Selection
• Updated spectrum span: RF Sweep, Guard 24/7: broadband Signal Analyzer: displayed, selected, real-time Car Tracker Detector: mobile bands
• Fields of ‘Signals’ table: Frequency, Bandwidth, Name, dbm Level, dbm Peak Level, Danger Level, Peak Danger Level
• Fields of ‘Bands’ table:Begin, End, Name, Type, Threshold, Priority, Tracker detection
• Fields of ‘Known Signals’ table: Frequency, BW, Name, Modulation

Supplied set

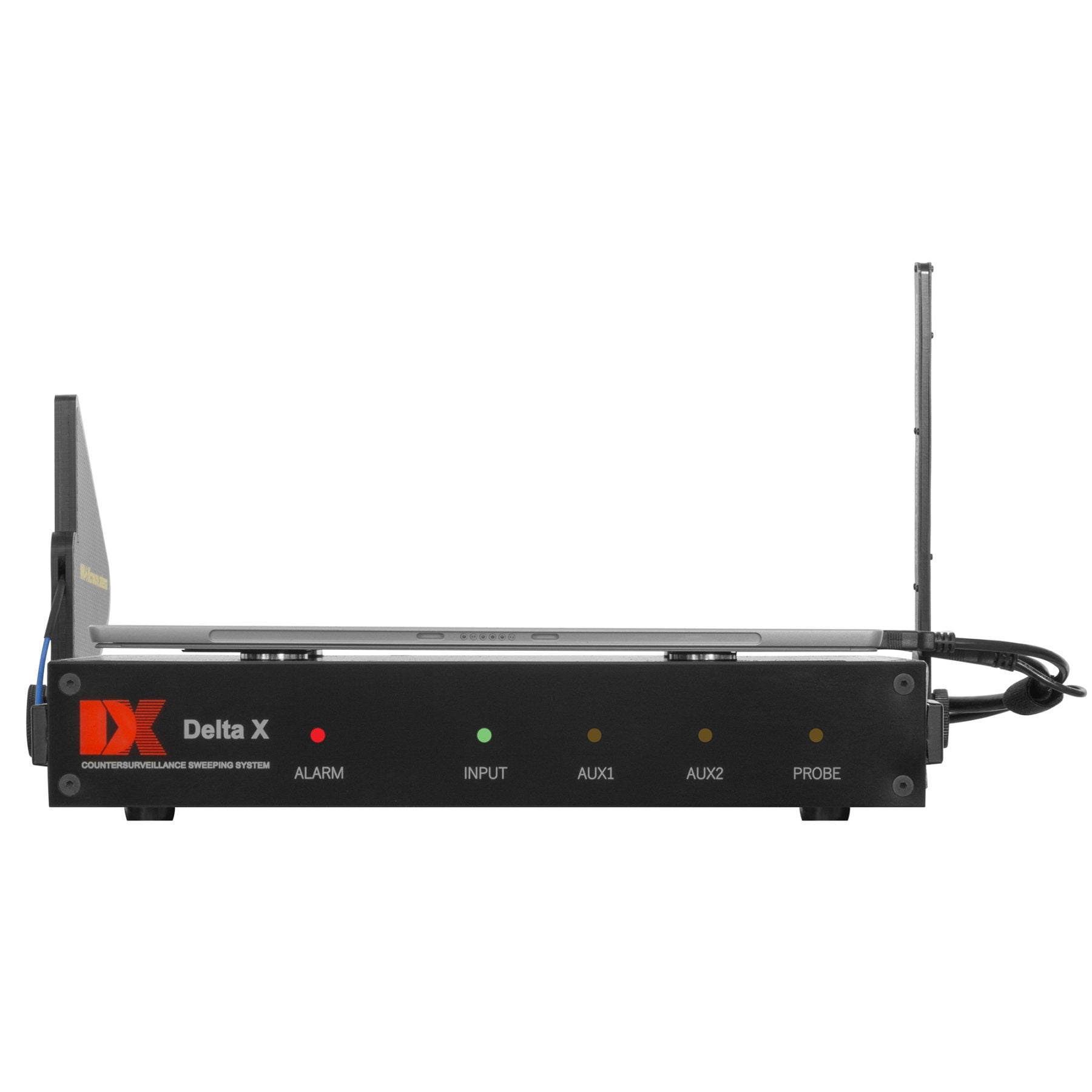

• Main unit with the built-in spectrum analyzer and RF switcher
• Carry case
• Software Delta X on a USB drive
• ODA-4 - omnidirectional wideband antenna with screw and 20 cm cable
• MWA-6 - microwave antenna with screw and 20 cm cable
• Multifunction Probe with cables (high-voltage cable, low-voltage cable, 2 m coaxial cable)
• In-line modular adapter
• Set of accessories (USB Type C to USB Type A adapter - 2, angle USB adapter - 2, magnetic stickers for laptop/tablet - 4)
