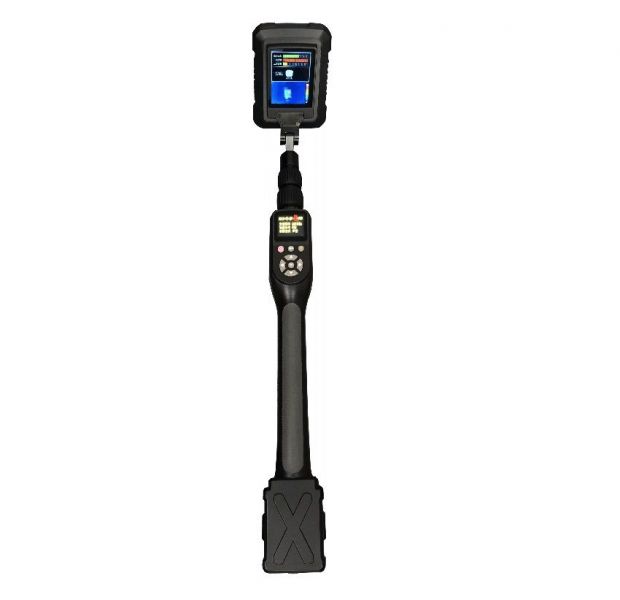

Product Advantages
• Working Frequency Range: 2.404GHz-2.472GHz
• Receiving Harmonic Range: Manual or Auto
• Receiving Sensitivity: Less than -140dBm
• Battery: Li Battery, working over 4 Hours
• Interactive Interface: LCD, Audio, Vibration
• Detection Distance: GPS module @ 400-500mm; Mobile Phone @ 180-220mm; SIM Card @ 90-120mm
• Array Format: 160 * 120 Continuous Scanning
• Thermal Image Sensitivity: < 50mK
Application scenarios:
It can be widely used in government, public security, prison, justice, army, education examination, business security and personal privacy protection, etc.
Business Safety: Detecting unauthorized electronic devices, such as eavesdroppers, mobile phones and devices with SIM cards, hidden in company board rooms or secret offices.
Public Safety: Detecting electronic devices hidden or prohibited from use in safe areas, such as detonators, remote controllers, etc.
Personal Privacy Protection: Hidden cameras and surveillance devices such as recording pens, cameras, etc. in residential buildings and hotels.
Features:
• Evaluation of Hidden Object Types: Through thermal imaging function, we can quickly and intuitively judge the appearance of the electronic products under test, and help the inspectors quickly judge the types of hidden electronic products.
• Strong Semiconductor Recognition Ability: Built-in spectrum analyzer supporting second and third harmonic detection can quickly and effectively identify devices and devices containing semiconductors.
• High sensitivity: In particular SIM card devices have a high density of intelligence, which ensures that secret books and mobile communication devices can be quickly detected.
• Low false positive rate: The built-in optimized radar detection algorithm greatly improves the detection capability, and the false alarm rate is very low.
• Safe and reliable: The characteristics of the equipment meet the requirements of electromagnetic radiation and are absolutely safe to the human body.
• Flexible and simple operation: The interface is simple and intuitive, the keys are few and concise, and it is easy to operate manually.
| Technical Specifications | |
| Nonlinear Junction Parameters | |
| Transmitting Frequency range | 2.404 GHz - 2.472 GHz |
| Receiving 2nd Harmonic | 4.808 GHz-4.944 GHHz |
| Receiving 3d Harmonic | 7.212 GHz-7.416 GHz |
| Voltage | 7.4V |
| Pulse Mode Transmit Power (Max.) | 0-4W (ERIP) |
| Receiving sensitivity | -140dBm |
| Receiving dynamic adjustable range | 30dB |
| Operation Time in Max Power Pulse Mode | 4h |
| Thermal Imaging Parameters | |
| Array format | 160x120, continuous scanning |
| Pixel size | 12 um |
| Thermal imaging sensitivity | <50mK (0.050 C) |
| FOV-horizontal | 57o |
| FOV-diagonal | 71o |
| Lens type | F/1.1 |
| Other Parameters | |
| Battery type | Replaceable lithium battery |
| Charging time | Fast charging 2.5 hours |
| Interactive interface | Audio LCD Displays Received Harmonic Signal Intensity |
| prompts are supported and headphones can be connected. | |
| Supporting Vibration Tips | |
| LCD Display Imaging of Measured Objects | |
| Detection distance | GPS module: 40-50cm |
| Mobile phone: 18-22cm | |
| Product size | 750(L)*114(W)*108mm(H) |
| Outer box size | 700(L)*330(W)*180 mm(H) |
| Product weight | 1.56kg |
| Working temperature | -30 …+55o C |
| Working humidity | No more than 93%, no condensate |
