TKP-ORPRO – Advanced TSCM Inspection Kit

TKP-ORPRO – Advanced TSCM Inspection Kit

TKP-ORPRO is a premium TSCM inspection kit configured for operators conducting advanced technical surveillance countermeasures in time-sensitive and high-risk environments.

ORPRO combines live RF detection with event logging and advanced optical lens inspection, addressing both emitting and non-emitting surveillance threats within a single operational workflow.

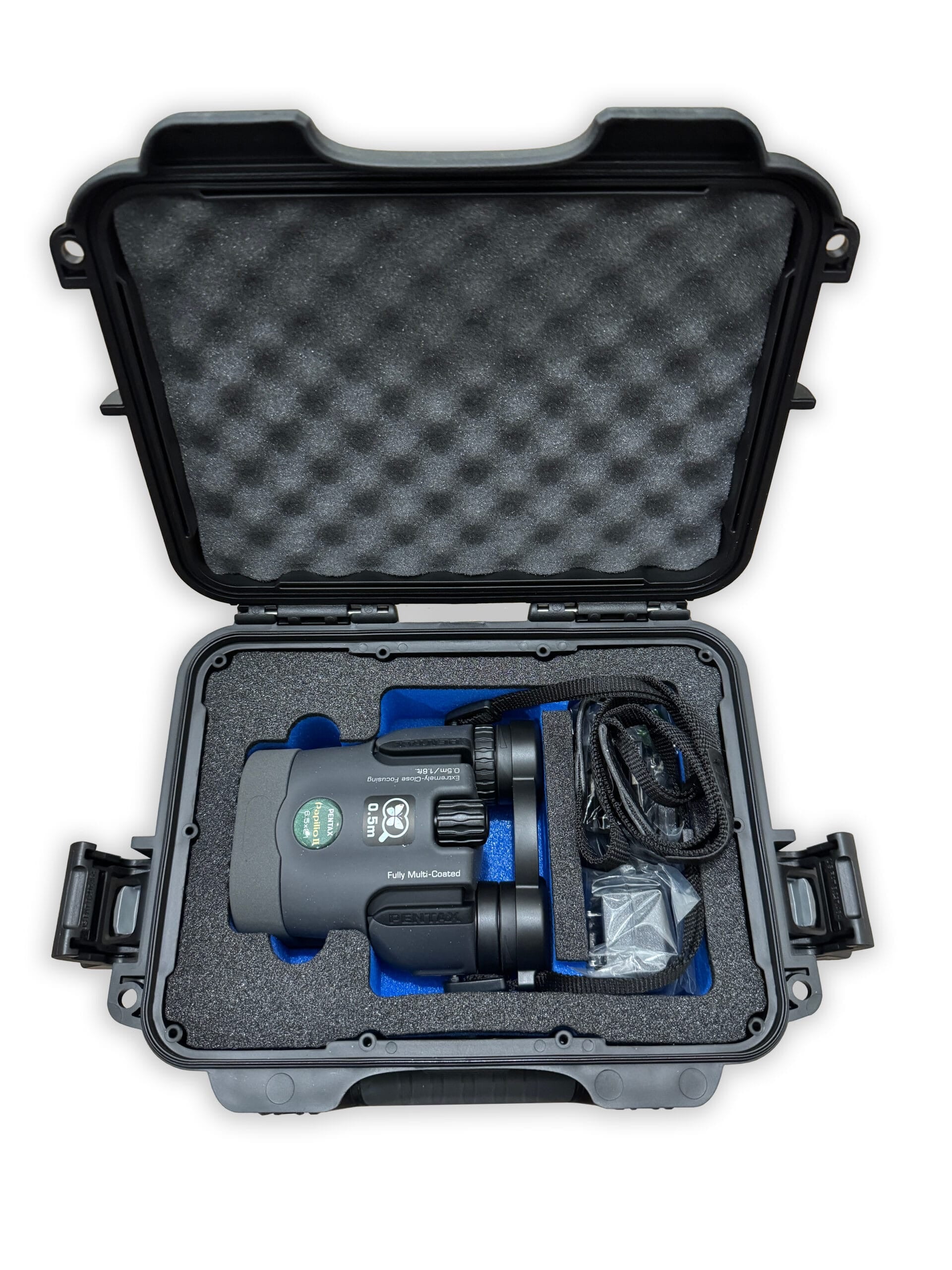

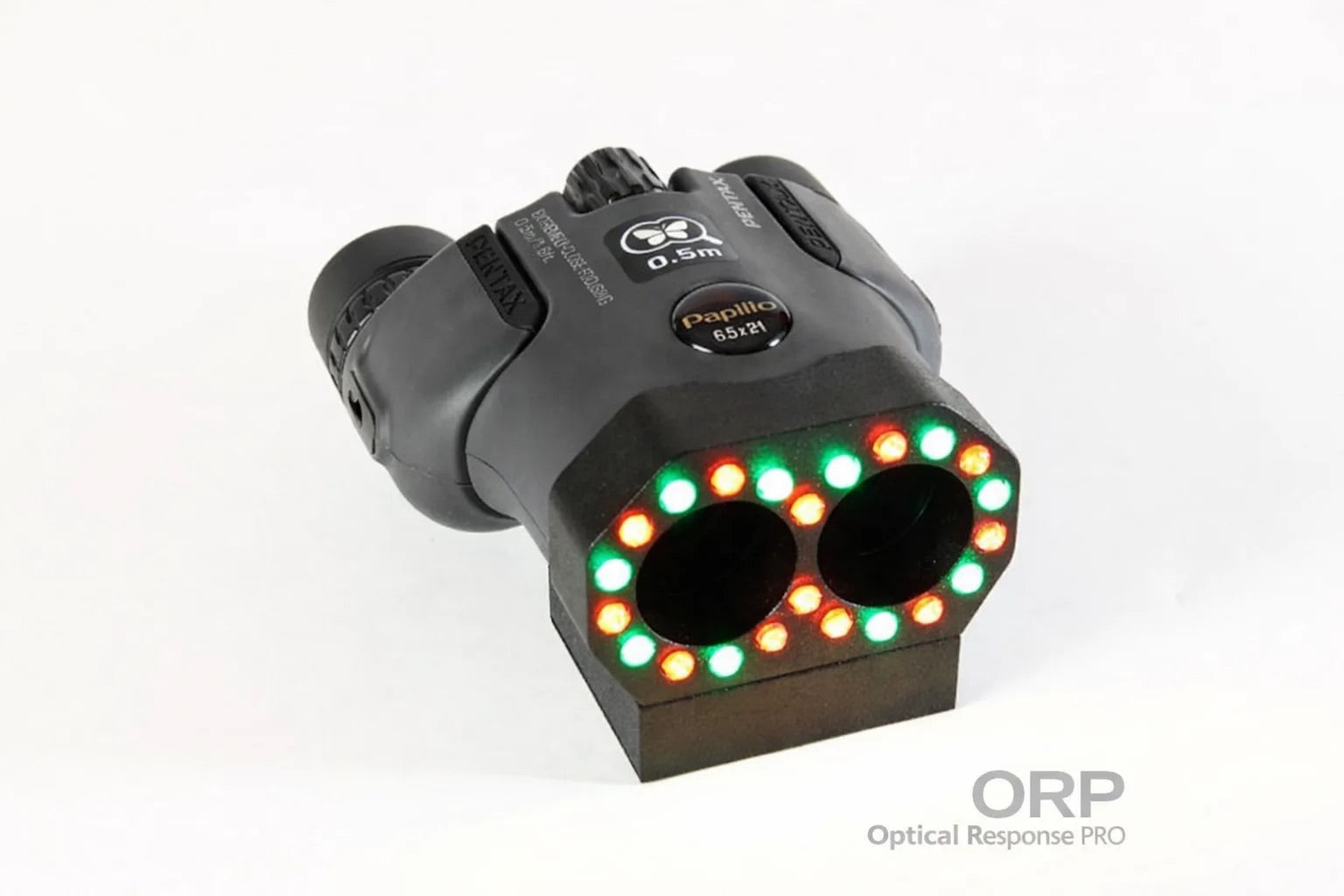

Advanced Optical Lens Inspection (ORP Core Capability)

The optical inspection system provides advanced camera lens detection capability that cannot be achieved through RF analysis alone.

It enables operators to visually inspect fixtures, fittings, surfaces, and objects for covert camera lenses and reflective optical elements, including devices that are dormant, passive, or non-transmitting.

Controlled optical zoom and magnification support stand-off inspection, allowing elevated, recessed, or distant targets to be examined without ladders, furniture movement, or physical access to the inspection point.

The optical system is compact, portable, and optimized for rapid deployment, supporting both wide-area visual scanning and targeted close inspection where indicators are present.

This capability directly addresses surveillance risks that do not rely on RF emission and is a defining element of the ORPRO system architecture.

RF Detection & Live Scanning

The ORPRO TSCM detection system operates in live scan mode across a wide frequency range, enabling detection of common and specialist surveillance signals including:

• Wi-Fi
• GSM
• DECT
• Bluetooth
• GPS trackers
• Burst transmissions and other emitters

Burst Transmission Capture

Operators can actively monitor RF activity during sweeps or configure the system for prolonged event logging at a fixed location, capturing timestamped RF events over time for post-inspection analysis and reporting.

Event Log Reporting

Event log reporting to PDF via PC / Windows / Linux

Logged RF data can be reviewed and exported to support operational reporting, escalation decisions, and internal review processes where documentation and repeatability are required.

Field-Ready Kit

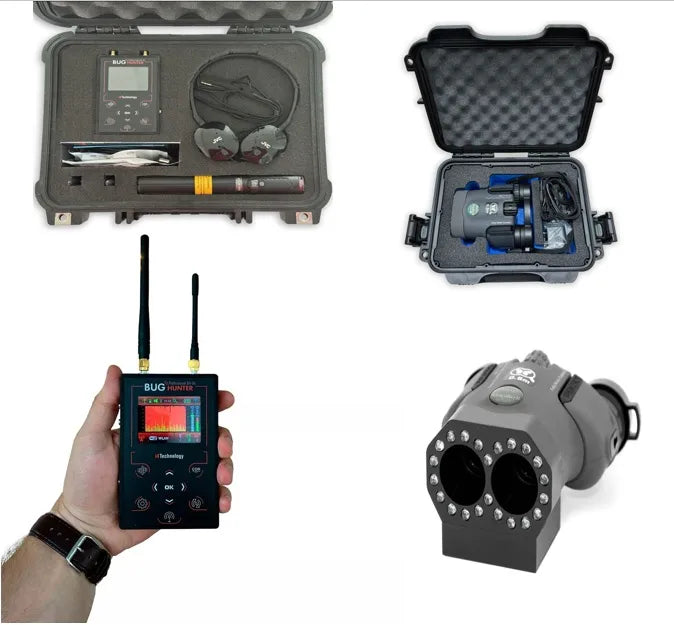

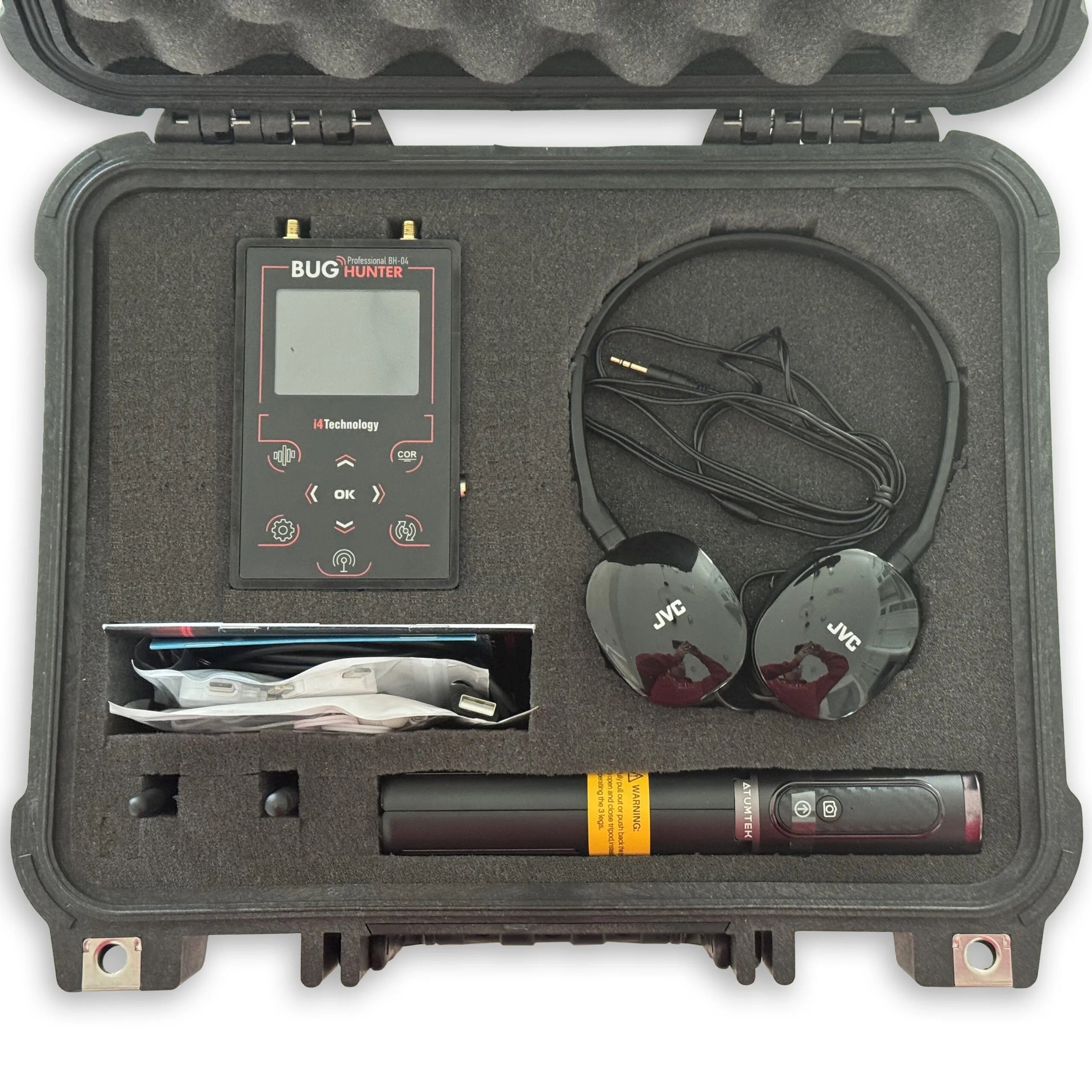

TKP-ORPRO is supplied as a complete, field-ready kit housed in military-grade protective cases.

Both systems are designed for single-operator carry, with each case weighing under 3 kg, allowing fast movement between rooms, vehicles, temporary locations, and controlled spaces.

Ideal for Executive Protection & Sensitive Environments

ORPRO is used by TSCM operators supporting executive protection, government and military inspections, and sensitive corporate or diplomatic operations where optical surveillance risk is as critical as RF threat detection.

TKP-ORPRO represents the highest practical capability tier for professional TSCM inspections before transitioning into large-scale, resource-intensive government programs.

For the majority of operational environments, ORPRO delivers comprehensive RF coverage, advanced optical inspection, and excellent portability, making it ideal for fast-paced, decision-critical TSCM operations.

TSCM Operatives

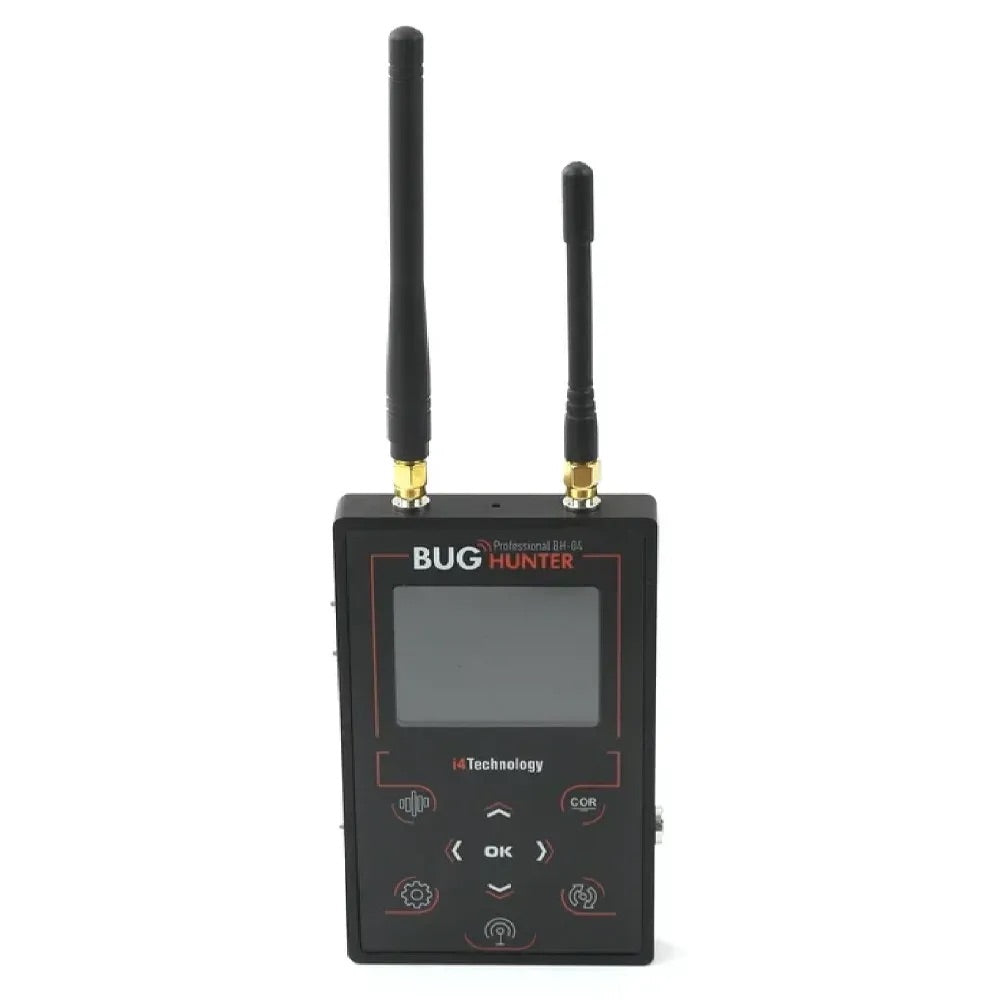

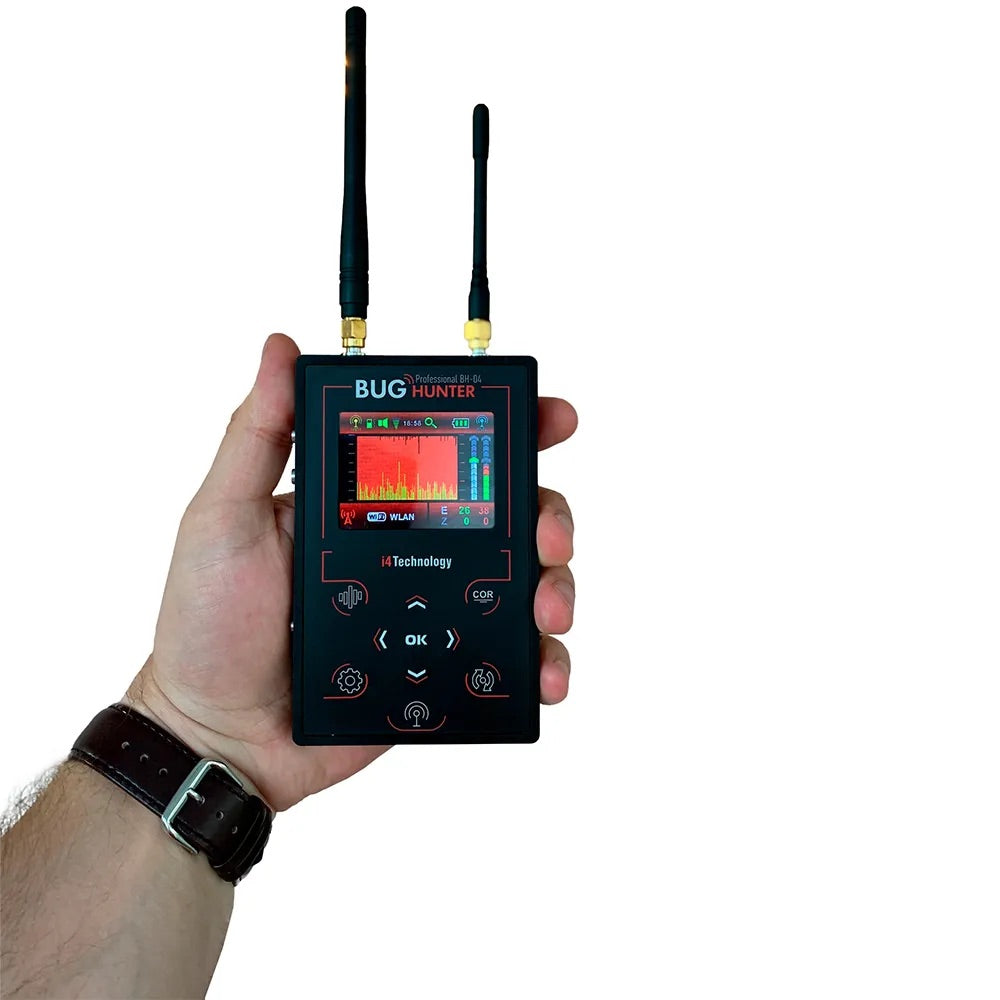

TSCM professionals need high-performance tools to detect unauthorized transmissions. The BH04 PRO’s event logging captures real-time data, documenting RF threats with precision. Its portable, discreet design enables easy deployment, while automated reporting ensures seamless monitoring. Covering 0.10 MHz to 8 GHz, it detects spy cameras, spycams, bugging devices, and listening devices, ensuring no signal is missed. TSCM operatives in government agencies, corporate security, and private investigations rely on BH04 PRO for actionable intelligence.

C-Suite Executives

Corporate leaders face corporate espionage and insider threats targeting sensitive discussions. The BH04 PRO secures offices, boardrooms, and residences, detecting unauthorized transmissions without requiring technical expertise. Financial institutions, legal firms, and technology enterprises benefit from proactive monitoring, preventing data leaks and unauthorized recording devices.

Security Consultants

Security consultants need fast, effective tools to assess vulnerabilities. The BH04 PRO detects and documents bugging, unauthorized devices, and surveillance risks with plug-and-play ease. Its automated reporting delivers professional-grade evidence, streamlining investigations. Law firms, private investigators, and security teams use it to monitor executive offices, conference rooms, and residences for covert surveillance threats.

Corporate Management Teams

Corporate security demands proactive threat detection. The BH04 PRO enables in-house teams to monitor high-risk areas, identifying vulnerabilities before exploitation. By tracking RF activity, security teams establish baselines and detect anomalies. Legal services, telecommunications, government agencies, and critical infrastructure face growing risks of spy cameras, listening devices, and rogue transmissions. BH04 PRO safeguards intellectual property, financial data, and sensitive communications, fortifying corporate security strategies.

IT & Cyber Security Teams

As cyber threats evolve, IT & Cyber Security Teams must address both digital and RF-based risks. The BH04 PRO bridges the gap between traditional network security and physical security by detecting unauthorized devices, rogue transmissions, and wireless eavesdropping attempts. Many cyber breaches originate from hardware-based attacks such as bugging, spycams, and listening devices hidden in secure environments. Data centers, financial institutions, and government agencies rely on the BH04 PRO to detect unauthorized wireless activity, ensuring that IT infrastructure remains secure against both digital and RF threats.

Specifications

Frequency Range

• ANT1 Channel: 10 – 2400 MHz
• ANT2 Channel: 2400 – 8000 MHz

Sensitivity of Frequency Meter

• Up to -50 dBm -BH04 PRO

Sensitivity

• ANT1 Channel: Up to -70 dBm
• ANT2 Channel: Up to -55 dBm

Dynamic Range

• ANT1 Channel: 70 dB
• ANT2 Channel: 55 dB

Operation Modes

• Search
• Oscillograph
• Protection

Power Consumption

• Up to 0.6 W -BH04 PRO

Power

• 3.5 – 4.2V Li-Pol battery (chargeable via 110/220V mains or 5V 1A power adapter)

Dimensions

• 130 х 80 х 16 mm (5.0 x 3.0 x 0.6 in)

Weight

• 200 g (7.0 oz) -BH04 PRO

The Increasing Importance of Event Logging in TSCM Bug Sweeps

In today’s digital world, safeguarding sensitive information has never been more critical. Technical Surveillance Countermeasures (TSCM) bug sweeps play a vital role in detecting and neutralizing covert surveillance threats. However, traditional sweeps often fail to capture advanced digital surveillance tools, which remain inactive for long periods before transmitting data.

This is where event logging becomes essential, allowing professionals to continuously monitor for unauthorized transmissions and uncover threats that may otherwise go undetected.

Evolving Threat Landscape

The rapid rise of IoT-enabled surveillance tools with WiFi, GSM, and audio/video capture has changed the landscape of electronic threats. Traditional TSCM sweeps focused on physical inspections, but modern threats use burst transmissions, activating only for short periods to avoid detection.

Devices such as store-and-forward recorders capture hours of footage and transmit data at unpredictable times, making them nearly impossible to detect without event logging. Without continuous monitoring, organizations remain vulnerable to data leaks and corporate espionage.

Why Event Logging is Often Overlooked

• High Cost – Traditional event logging systems range from $7,000 to $25,000, making them inaccessible to many professionals.
• Security Concerns – TSCM specialists are reluctant to leave high-value systems on-site, while clients hesitate to take responsibility for the equipment.
• Lack of Awareness – Many clients and professionals underestimate modern threats, assuming event logging is only necessary for high-risk scenarios.

BH04 PRO – A Game-Changer in Event Logging

• Affordable – Priced at under $2,000, it eliminates cost concerns associated with traditional systems.
• Compact & Discreet – The small form factor allows it to be easily deployed on-site without raising suspicion.
• Unmanned Deployment – Can be left on-site, continuously recording transmissions, reducing the need for specialists to remain on location.
• Scalable – Multiple units can be deployed across client locations, enhancing surveillance coverage without major financial risk.

Understanding Advanced Digital Threats

• Records audio/video data and stores it internally.
• Transmits collected data at irregular times to avoid detection.
• Uses long-life batteries to remain hidden for extended periods.
• Can be purchased worldwide, making them easy to acquire and difficult to trace.

Without event logging, these threats remain invisible, as traditional sweeps only capture real-time signals. By incorporating event logging, TSCM professionals can track patterns, identify burst transmissions, and detect unauthorized signals with precision.

How Surveillance Threats Penetrate Organizations

• Competitors – Rivals attempting to gain access to strategic business intelligence.
• Disgruntled Employees – Internal threats from those seeking to sabotage operations or leak sensitive information.
• Industrial Espionage – Foreign or domestic actors conducting covert surveillance for strategic or financial gain.
• Cybercriminals – Hackers using RF-based transmission tools to extract data without network breaches.

The Value of Event Logging

• Capture Digital Footprints – Event logs create a forensic trail, helping professionals reconstruct activities and identify security breaches.
• Enable Proactive Threat Detection – Instead of reacting to incidents, organizations can detect suspicious activity before a breach occurs.
• Ensure Compliance & Auditing – Many industries require continuous monitoring for regulatory and legal compliance.
• Support Investigations – Provides detailed logs that serve as evidence in forensic analysis and legal cases.

PBN-BH04 PRO – A Proven Solution in North America

• Since 2021, over 230 investigation agencies have deployed the BH04 PRO in real-world TSCM investigations.
• Successfully showcased at TALI, CALI & SCALI industry events.
• Available at specialist security retailers nationwide.
• Used by law enforcement, corporate security teams, and private investigators.

As surveillance threats become more sophisticated, event logging is no longer optional—it’s essential. Without continuous monitoring, organizations leave themselves vulnerable to insider threats, corporate espionage, and digital surveillance tools designed to avoid detection.

The PBN-BH04 PRO makes event logging affordable, scalable, and practical, ensuring that TSCM professionals, corporations, and security agencies can protect their sensitive environments with confidence.

Integrating event logging into every TSCM sweep is no longer a luxury—it’s a necessity.
